Name of light source: | TLB-6600-L-ES Venturi |
Name of vendor selling or name of group using this source: | New Focus |
Year of initial publication or catalog entry: | 2004 |
Primary application for which this source was developed: | test and measurement |
References or URLs for relevant information on this source: | http://www.newfocus.com/product/tls_venturi_6600.cfm |
Span of the spectrum covered, based on -10dB points [cm-1]: | 469.682 |
Time to cover this range [s]: | 0.05 |
Spectrum update repetition rate [Hz]: | 20 |
Center wavenumber [cm-1]: | 6849.315 |
Center wavelength [nm]: | 1460.0000146 |
Spectral Resolution, best in scan [cm-1]: | 5.0E-6 |
Power in TEM00, averaged over 1 s [mW]: | 1 |
Shortest time spent on 1 spectral resolution element [s]: | 5.0E-10 |
Wavelength stability error [nm]: | 0.015 |
Physical dimension -- length [mm]: | 500 |
Physical dimension -- width [mm]: | 500 |
Physical dimension -- height [mm]: | 200 |
Approximate system cost [US$]: | 33950 |
Data rate [S/s]: | 6.43399993566 |
Duty cycle [%], based on -10dB points: | 100% |
Best spectral resolution [GHz]: | 0.00015 |
Best spectral resolution [nm]: | 1.065800021316E-6 |
Longest coherence length [cm]: | 200000 |
Spectral tracking linearity [%]: | 93.9364% |
Spectral coverage [nm]: | 100.11741712235 |
Size [m3]: | 0.05 |
Initial entry time: | 2006-08-23 15:27:57 |
Last modified time: | 2006-08-30 14:11:38 |

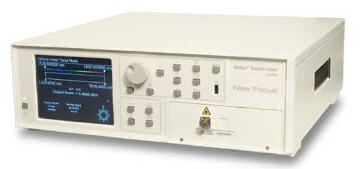

Associated image file: |
