| Name of light source: | Chirped femtosecond supercontinuum |
| Name of vendor selling or name of group using this source: | Sanders group, UW-Madison |
| Year of initial publication or catalog entry: | 2006 |
| Primary application for which this source was developed: | combustion gas sensing |
| References or URLs for relevant information on this source: | Published at SAE World Congress "Application of a Novel White Laser Sensor to an HCCI Engine", 2006-01-1200 |
| Span of the spectrum covered, based on -10dB points [cm-1]: | 990 |
| Time to cover this range [s]: | 3.0E-7 |
| Spectrum update repetition rate [Hz]: | 200000 |
| Center wavenumber [cm-1]: | 7018 |
| Center wavelength [nm]: | 1424.9073810202 |
| Spectral Resolution, best in scan [cm-1]: | 0.43 |
| Power in TEM00, averaged over 1 s [mW]: | 0.3 |
| Shortest time spent on 1 spectral resolution element [s]: | 1.5E-10 |
| Worst spectral resolution in scan [cm-1]: | 0.57 |
| Physical dimension -- length [mm]: | 1000 |
| Physical dimension -- width [mm]: | 500 |
| Physical dimension -- height [mm]: | 300 |
| Approximate system cost [US$]: | 150000 |
| Data rate [S/s]: | 138956.4 |
| Duty cycle [%], based on -10dB points: | 6% |
| Best spectral resolution [GHz]: | 12.9 |
| Best spectral resolution [nm]: | 0.087305524912895 |
| Longest coherence length [cm]: | 2.3255813953488 |
| Spectral tracking linearity [%]: | 115.11627906977% |
| Spectral coverage [nm]: | 201.00574340411 |
| Size [m3]: | 0.15 |
| Initial entry time: | 2006-08-27 06:43:54 |
| Last modified time: | 2006-08-30 14:08:17 |

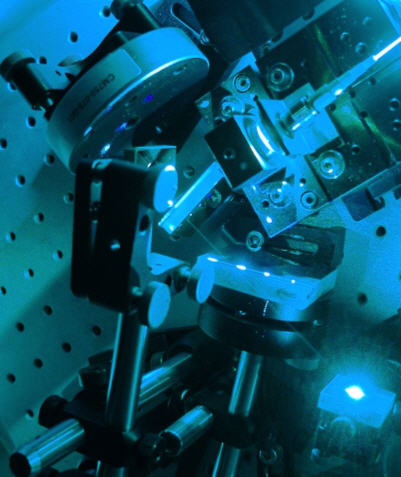

| Associated image file: |
