| Name of light source: | Fourier Domain Mode Locking Laser |
| Name of vendor selling or name of group using this source: | Fujimoto group, MIT |
| Year of initial publication or catalog entry: | 2006 |
| Primary application for which this source was developed: | OCT scanning |
| References or URLs for relevant information on this source: | http://dx.doi.org/10.1364/OPEX.13.003513 |
| Span of the spectrum covered, based on -10dB points [cm-1]: | 272.5 |
| Time to cover this range [s]: | 5.0E-6 |
| Spectrum update repetition rate [Hz]: | 100000 |
| Center wavenumber [cm-1]: | 7380.1 |
| Center wavelength [nm]: | 1354.9951897671 |
| Spectral Resolution, best in scan [cm-1]: | 0.54 |
| Power in TEM00, averaged over 1 s [mW]: | 10 |
| Shortest time spent on 1 spectral resolution element [s]: | 9.2E-9 |
| Worst spectral resolution in scan [cm-1]: | 0.54 |
| Physical dimension -- length [mm]: | 431 |
| Physical dimension -- width [mm]: | 558.8 |
| Physical dimension -- height [mm]: | 228.6 |
| Approximate system cost [US$]: | 15000 |
| Data rate [S/s]: | 20110.7725 |
| Duty cycle [%], based on -10dB points: | 50% |
| Best spectral resolution [GHz]: | 16.2 |
| Best spectral resolution [nm]: | 0.099144646071763 |
| Longest coherence length [cm]: | 1.8518518518519 |
| Spectral tracking linearity [%]: | 92.851851851852% |
| Spectral coverage [nm]: | 50.031326026955 |
| Size [m3]: | 0.05505666408 |
| Initial entry time: | 2006-11-08 11:38:49 |
| Last modified time: | 2006-11-08 12:59:08 |

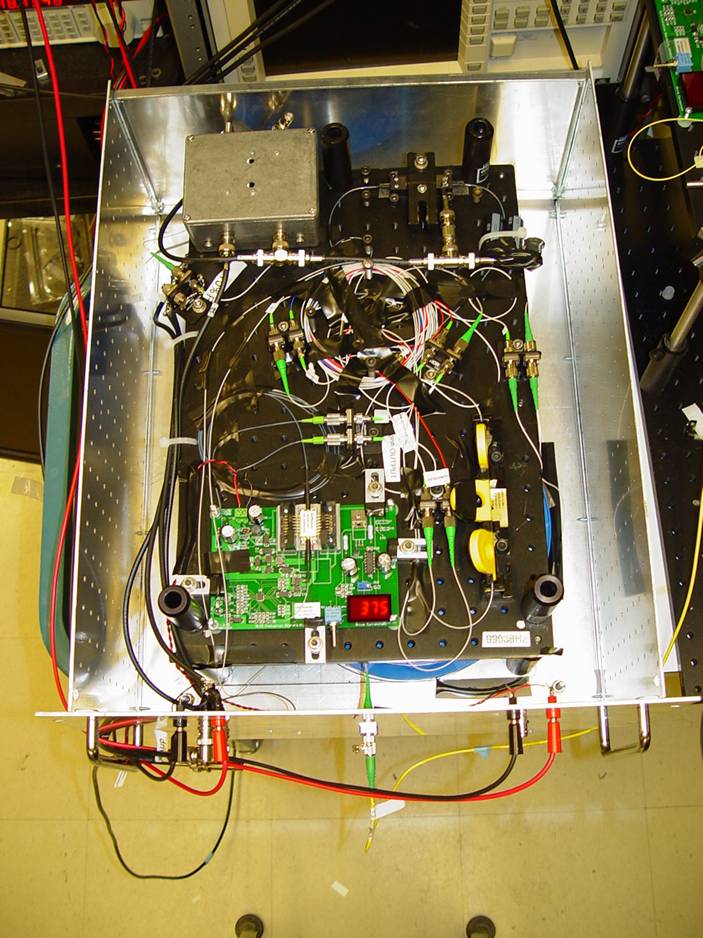

| Associated image file: |
