| Name of light source: | Rapidly Swept Tunable Laser-SL1325-P16 |
| Name of vendor selling or name of group using this source: | Thorlabs |
| Year of initial publication or catalog entry: | 2005 |
| Primary application for which this source was developed: | optical coherence tomography |
| References or URLs for relevant information on this source: | http://www.thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=1276&Visual_ID=2214 |
| Additional information / notes: | Spectral resolution is an estimation. Should be updated. |
| Span of the spectrum covered, based on -10dB points [cm-1]: | 742.26 |
| Time to cover this range [s]: | 6.25E-5 |
| Spectrum update repetition rate [Hz]: | 8000 |
| Center wavenumber [cm-1]: | 7565.37627 |
| Center wavelength [nm]: | 1321.8113208267 |
| Spectral Resolution, best in scan [cm-1]: | 1.4 |
| Power in TEM00, averaged over 1 s [mW]: | 12 |
| Shortest time spent on 1 spectral resolution element [s]: | 8.4E-8 |
| Physical dimension -- length [mm]: | 449 |
| Physical dimension -- width [mm]: | 435 |
| Physical dimension -- height [mm]: | 177 |
| Approximate system cost [US$]: | 30000 |
| Data rate [S/s]: | 4492.3809521362 |
| Duty cycle [%], based on -10dB points: | 50% |
| Best spectral resolution [GHz]: | 42 |
| Best spectral resolution [nm]: | 0.2446059235012 |
| Longest coherence length [cm]: | 0.71428571428571 |
| Spectral tracking linearity [%]: | 71.25696% |
| Spectral coverage [nm]: | 129.68656627 |
| Size [m3]: | 0.034570755 |
| Initial entry time: | 2006-08-28 14:53:12 |
| Last modified time: | 2006-08-30 14:28:40 |

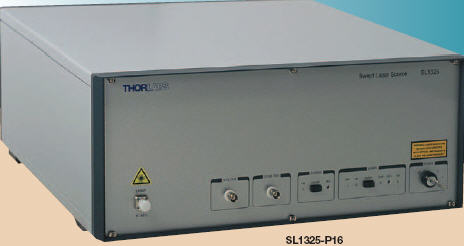

| Associated image file: |
